Customized YG8 YG6 YG6X Tungsten Carbide Rod with High Hardness and Wear Resistance for Secondary Processing

Product Categories
Chengdu Kedel Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Customized YG8 YG6 YG6X Tungsten Carbide Rod with High Hardness and Wear Resistance for Secondary Processing

Place of Origin : Sichuan, China

Brand Name : Kedel

Model Number : YG8

MOQ : 5

Price : $2-12

Material Composition : Tungsten carbide and cobalt

Alloy Specification : YG8, YG6, YG6X, YG9C, YG11C, YG13C

Surface Finish : Glossy

Shape : Cylindrical

Density Range : 12.00-14.90 g/cm³

Hardness Range : 86.5-93.6 HRA

TRS Range : 2000-4200 Mpa

Grain Size : 0.4-2.4 μm

Porosity Grade : A02/B00/C00

Diameter Range : 1.5-32 mm

Diameter Tolerance : ±0.5_+0.4 mm (Unground), h6 (Fine Ground)

Length Range : 310-330 mm

Length Tolerance : +2_+6 mm (Unground), ±2_+6 mm (Fine Ground)

Minimum Order : 5 pieces

Power Source : Electric

Contact Now

Customized YG8 YG6 YG6X Tungsten Carbide Rod with High Hardness and Wear Resistance for Secondary Processing
Products Description
Customized YG8 YG6 YG6X Tungsten Carbide Rod with High Hardness and Wear Resistance for Secondary Processing
Product Paramenters
Customized YG8 YG6 YG6X Tungsten Carbide Rod with High Hardness and Wear Resistance for Secondary Processing
Grade

Composition(% in weight)
Physical Properties
Grain size(μm)
Densityg/cm³(±0.1)
HardnessHRA(±0.5)
TRS Mpa(min)
Porosity
WC
Ni
Ti
TaC
A/B/C
KD115/YG6X
93.5
6.0
-
0.5
14.90
93.0
2700
A02/B00/C00
0.6-0.8
KD335/YG10X
89.0
10.5
-
0.5
14.40
91.8
3800
A02/B00/C00
0.6-0.8
KG6/YG6
94.0
6.0
-
-
14.90
90.5
2500
A02/B00/C00
1.2-1.6
KG8/YG8
92.0
8.0
-
-
14.75
90.0
3200
A02/B00/C00
1.2-1.6
KG9/YG9
91.0
9.0
-
-
14.60
89.0
3200
A02/B00/C00
1.2-1.6
KG9C/YG9C
91.0
9.0
-
-
14.60
88.0
3200
A02/B00/C00
1.6-2.4
KG10/KG10
90.0
10.0
-
-
14.50
88.5
3200
A02/B00/C00
1.2-1.6
KG11/YG11
89.0
11.0
-
-
14.35
89.0
3200
A02/B00/C00
1.2-1.6
KG11C/YG11C
89.0
11.0
-
-
14.40
87.5
3000
A02/B00/C00
1.6-2.4
KG13/YG13
87.0
13.0
-
-
14.20
88.7
3500
A02/B00/C00
1.2-1.6
KG13C/YG13C
87.0
13.0
-
-
14.20
87.0
3500
A02/B00/C00
1.6-2.4
KG15/YG15
85.0
15.0
-
-
14.10
87.5
3500
A02/B00/C00
1.2-1.6
KG15C/YG15C
85.0
15.0
-
-
14.00
86.5
3500
A02/B00/C00
1.6-2.4
KD118/YG8X
91.5
8.5
-
-
14.50
93.6
3800
A02/B00/C00
0.4-0.6
KD338/YG12X
88.0
12.0
-
-
14.10
420092.8
2200
A02/B00/C00
0.4-0.6
KD25/P25
77.4
8.5
6.5
6.0
12.60
91.8
2200
A02/B00/C00
1.0-1.6
KD35/P35
69.2
10.5
5.2
13.8
12.70
91.1
2500
A02/B00/C00
1.0-1.6
KD10/M10
83.4
7.0
4.5
4.0
13.25
93.0
2000
A02/B00/C00
0.8-1.2
KD20/M20
79.0
8.0
7.4
3.8
12.33
92.1
2200
A02/B00/C00
0.8-1.2
NOTE: Customization available per customer drawing or actual sample
Ungroud Rods
D(mm)
Tolerance
L(mm)
Tolernace
1.5-32
±0.5_+0.4
310/330
+2_+6
Fine Grounded Rods
D(mm)
Tolerance
L(mm)
Tolernace
1.5-32
h6
310/330
±2_+6

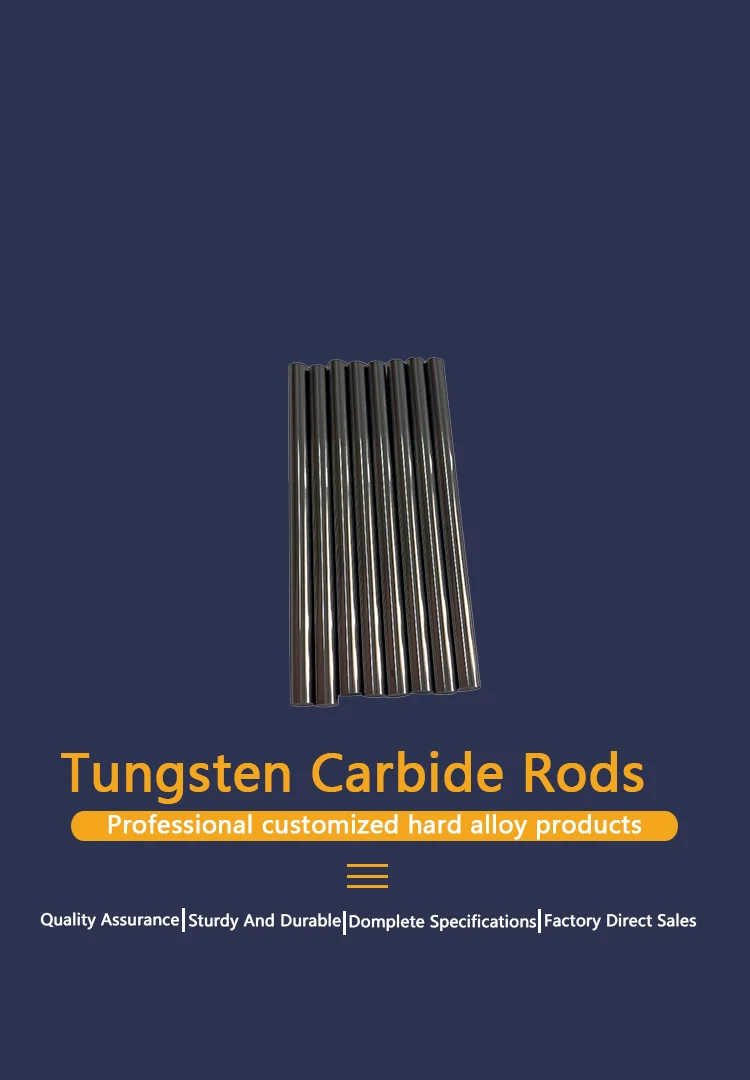

Details Images
Customized YG8 YG6 YG6X Tungsten Carbide Rod with High Hardness and Wear Resistance for Secondary Processing
Why Choose Us
Customized YG8 YG6 YG6X Tungsten Carbide Rod with High Hardness and Wear Resistance for Secondary Processing
Company Profile
Customized YG8 YG6 YG6X Tungsten Carbide Rod with High Hardness and Wear Resistance for Secondary Processing
Exhibition
Customized YG8 YG6 YG6X Tungsten Carbide Rod with High Hardness and Wear Resistance for Secondary Processing
Customized YG8 YG6 YG6X Tungsten Carbide Rod with High Hardness and Wear Resistance for Secondary Processing
Customized YG8 YG6 YG6X Tungsten Carbide Rod with High Hardness and Wear Resistance for Secondary Processing
Customized YG8 YG6 YG6X Tungsten Carbide Rod with High Hardness and Wear Resistance for Secondary Processing
In our journey at Kedel Technology Co., Ltd. in Chengdu, every encounter with you is our honor. We are well aware that being able to stop here among the many choices is our greatest support and recognition. Your satisfaction is our relentless pursuit, and every positive review and repurchase is the driving force that inspires us to keep moving forward
