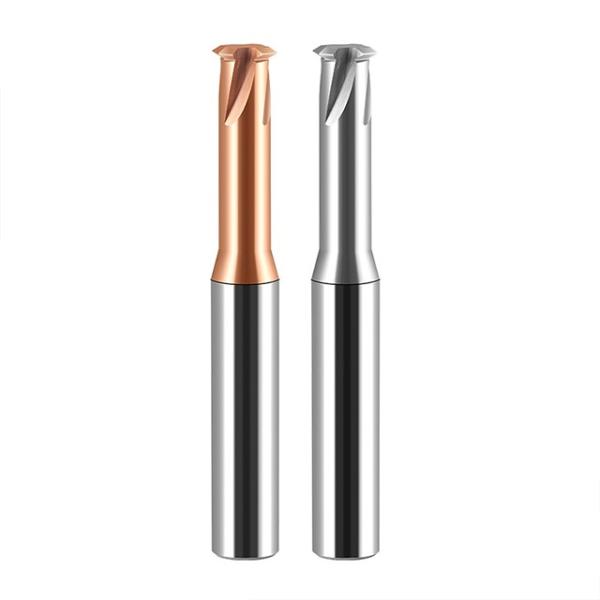

Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON

Model Number : 4 FLUTES

Brand Name : KEDEL

Place of Origin : Sichuan, China

MOQ : 10

Price : $0.84-1.20

Material : 0.6um fine-grained tungsten carbide

Coating : Balzers

Flute Count : 4

Shape : Single-Thread

Helix Angle : 35°

Hardness HRC : 65°

Pitch Range : M1.4*0.3 to M30*3.5

Cutting Diameter : D1.05 to D16

Flute Length : 4mm to 50mm

Shank Diameter : D4 to D16

Overall Length : 50mm to 90mm

Suitable Materials : COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON

Thread Types : M2, M3, M4, M6

Chip Flute : 4

Color : Slivery

Contact Now

Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON
Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON
Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON
Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON
Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON
Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON
parameter
value
Flutes
4
Chip Flute
4
Coating
Balzers
Shape
Single-Thread
Angle
35°
HRC
65°
Single-Thread Milling Cutter with Single-Tooth Design for M2, M3, M4, M6 Threads in COPPER, ALLOY STEEL, ORDINARY STEEL, CAST IRON
Number of Flutes
Pitch (mm)
Cutting Diameter
(mm)
Flute Length
(mm)
Shank Diameter
(mm)
Overall Length
(mm)

R
d
l
D
L






Three blades
M1.4*0.3
D1.05
4
D4
50
M1.6*0.35
D1.25
5
D4
50
M1.8*0.35
D1.4
5.6
D4
50
M2*0.35
D1.4
5.6
D4
50
M2*0.4
D1.54
6
D4
50
M2.5*0.45
D1.96
6.5
D4
50
M3*0.5
D2.4
8
D4
50
M8*0.5
D6
20
D6
50
M3.5*0.6
D2.75
10
D4
50
M4*0.7
D3.15
10
D4
50
M4.5*0.75
D3.5
12
D4
50
M8*0.75
D6
20
D6
50
M5*0.8
D4
12
D4
50
M6*1
D4.8
15
D6
50
M8*1.25
D6
20
D6
50
M10*1.5
D8
25
D8
60
Four blades
M14*1.5
D12
30
D12
75
M12*1.75
D10
30
D10
75
M14*2
D10
36
D10
75
M16*2
D12
45
D12
75
Five blades
M18*2.5
D14
48
D14
90
M24*3.0
D14
48
D14
90
M30*3.5
D16
50
D16
90
